AutoInspect: Inspection of complex objects – multisensory, modular, continuously digitized

Technical infrastructure and digital twin for quality inspection and comprehensive evaluation

© Fraunhofer IOSB
Overlay of 3D model and real test object
AutoInspect relies on open standards such as HTTP, OPC UA and the SensorThings API. The system is modular and thus easily expandable or configurable according to individual requirements.
© Fraunhofer IOSB/indigo
In addition to automated inspection processes, AutoInspect also integrates AR-supported manual inspection by a worker. Defects are detected and registered by finger pointing.

Description of the product

In quality assurance, digitally fused measurement data are important for automated inspection procedures and downstream process control. Ideally, different sensor and, if necessary, manual inspection results with a precise location reference should be merged into a uniform 3D model, a “digital quality twin” so to speak.

Such a database forms the basis for a weighted quality measure and for a variety of further analyses, also using machine learning methods, from which in turn measures for process improvement can be derived.

To realize this vision, Fraunhofer IOSB has developed "AutoInspect", a modular demonstrator for the inspection of many object classes, in a self-financed project. It demonstrates a range of optical inspection methods for surfaces, a simple workflow configuration and the merging of results into a Digital Quality Twin.

Features

  • Infrastructure for end-to-end object assessment (in real time) through modular measurement and inspection processes
  • Currently integrated inspection modules (for further explanation see the linked product sheets; in German language only):
  • Precise recording and evaluation of all test results, even over long periods of time, in a digital twin
  • Basis for the targeted elimination of error causes over several process stages
  • Interoperable architecture based on Industrie 4.0 standards (system architecture product sheet)

Fields of application

The use case realized as a demonstrator - inspection of a car body on a driverless transport system with the above-mentioned sensor systems - is one of many possibilities. AutoInspect can be adapted for any manufacturing processes, goods and combinations of inspection technologies and can be used along the entire product creation process, from raw material to final acceptance. It makes sense to use AutoInspect whenever different inspection processes interact and the precise registration and combined evaluation of inspection results promises added value.

Videos on AutoInspect

Privacy warning

With the click on the play button an external video from www.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: https://policies.google.com/privacy

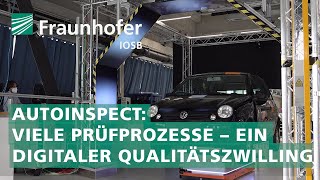

Explanatory film on AutoInspect

This video explains the idea of AutoInspect and the “Digital Quality Twin” in two minutes (in German language only).

Privacy warning

With the click on the play button an external video from www.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: https://policies.google.com/privacy

AutoInspect in action

This uncommented video shows a montage of a test run during an internal demonstration in December 2021.



Inspection and Optronic Systems

Do you want to learn more about our activities in the field of inspection technologies and automated quality control? Then visit the page of our business unit:





Project details

Technology development project financed from own funds.

Project duration: 2019-2022
